Introduction & Application:
Metal Frame scaffolding is a standardized steel pipe scaffolding system. Most of the components are produced by the factory according to the size. It can be used not only as an external scaffold, but also as a mobile scaffold or a full house scaffold. Because of its standardized size, the frame scaffolding has the characteristics of reasonable structure, good mechanical performance, easy disassembly and assembly during construction, safety and reliability, and economical applicability.
Styles
According to the style of frame scaffolding system, it can be divided into H frame scaffolding system (Mason Frame Scaffolding), Walk-through frame scaffolding system (ARCH Frame scaffolding), and Ladder frame scaffold. Many countries in the world have special regulations on the material and size of the steel pipe used in frame scaffolding system, such as the Japanese standard stipulates the steel pipe material of the main pole for Mason scaffold is STK-51 steel with a size of 42.7 × 2.5mm. The material of the auxiliary pole is STK-41 steel with a size of 34.2 × 2.3mm and 27.2 × 2.0 mm.
Mobile & Easy to use
Because the scaffolding rubber caster wheels with brake pads are installed at the frame bottom, the frame scaffold is easy to move, saving time and effort. Especially in indoor construction and house construction, frame scaffolding is favored by construction workers because of its advantages of lightness, mobility and fixed at any time. Mobile rolling frame scaffolding tower is very common in outdoor building wall repairing and construction.
Convenient transportation
Frame scaffold system has a simple structure, fewer accessories, and convenient transportation.
Huge market demands and High Rental returns
Frame Scaffolding system for sale and the rental market is very huge. Because this frame scaffolding is not only can be used in outdoor construction but also be used in Indoor building. Just like big project shoring frame scaffolding for bridge construction, or Access frame scaffolding for outdoor repairing. Especially mobile frame scaffold widely used on simple low-floor construction or personal home renovation. So you can not worry about the market sale or renting.
Main Feature of Ringlock Scaffolding System
Mobile
Frame scaffolding can be moved by according to engineering needs, more convenient and flexible
Simple
It has the advantages of simple assembly and disassembly, convenient movement, good load bearing, safe and reliable use, and good economic benefits.
Ladder & Walk Through Type
NYALA Frame scaffolding's classified two types, one is H TYPE Frames, the other is Walk Through Frames, also with accessories together. Any other type of frames can be designed as requested.
Component’s Size & Weight of NYALA Frame Scaffold System

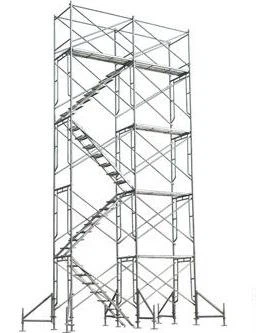

NYALA frame scaffolding consists of 2 pcs of vertical frames with spigots, cross braces, screw jack with base plate, caster wheels and steel planks with hooks at both ends to form a basic unit frame scaffolding.(following Pic 1) Several basic units frame scaffolds are vertically stacked through connecting pins to form a multi layer frame. In the horizontal direction, cross braces and steel planks are used to connect adjacent units into a whole, with stair ladders as up and downs steps. (following Pic 2)

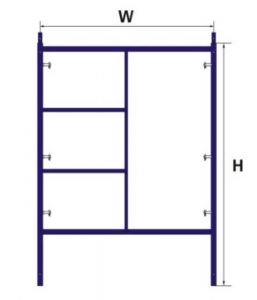

H frame/Mason Scaffolding System
Snap on locking Pin, Flip locking Pin, Fast locking Pin, Drop locking Pin, Vangard locking Pin, different locking pins available for each of the frame system
| Item No. | Product Name | Material | Size (mm) Width X Height | Surface Treatment |
|---|---|---|---|---|
| DA-F1001A | H Frame Scaffold System (Flip Lock Frame) | Q345 | 1524X635 | Painted/Powder Coated/Hot-dip galvanized/Electro-galvanized |
| 1524X914 | ||||
| 1524X1219 | ||||
| 1524X1524 | ||||
| 1524X1930 |

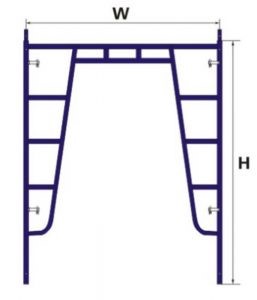

Walk Through / ARCH Frame Scaffold System
Snap on locking Pin, Flip locking Pin, Fast locking Pin, Drop locking Pin, Vangard locking Pin, different locking pins available for each of the frame system.
| Item No. | Product Name | Material | Size (mm) Width X Height | Surface Treatment |
|---|---|---|---|---|
| DA-F1001A | H Frame Scaffold System (Flip Lock Frame) | Q345 | 1524X635 | Painted/Powder Coated/Hot-dip galvanized/Electro-galvanized |
| 1524X914 | ||||
| 1524X1219 | ||||
| 1524X1524 | ||||
| 1524X1930 | ||||
| DA-F1001B | Walk Through/Main Frame Scaffold System (Flip Lock Frame) | Q345 | 1524X635 | Painted/Powder Coated/Hot-dip galvanized/Electro-galvanized |
| 1524X914 | ||||
| 1524X1219 | ||||
| 1524X1524 | ||||
| 1524X1930 |

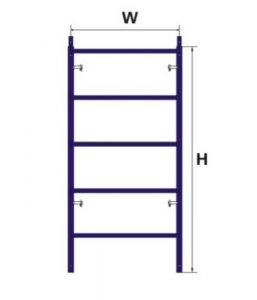

Ladder Frame Scaffold System
Snap on Locking Pin, Flip Locking Pin available.Narrow Ladder Frame available in width 2”(609.6mm) and with Fast locking pin, Drop locking Pin, Vangard Locking Pin.
| Item No. | Product Name | Material | Size (mm) Width X Height | Surface Treatment |
|---|---|---|---|---|
| DA-F1001A | H Frame Scaffold System (Flip Lock Frame) | Q345 | 1524X635 | Painted/Powder Coated/Hot-dip galvanized/Electro-galvanized |
| 1524X914 | ||||
| 1524X1219 | ||||
| 1524X1524 | ||||
| 1524X1930 | ||||
| DA-F1001B | Walk Through/Main Frame Scaffold System (Flip Lock Frame) | Q345 | 1524X635 | Painted/Powder Coated/Hot-dip galvanized/Electro-galvanized |
| 1524X914 | ||||
| 1524X1219 | ||||
| 1524X1524 | ||||
| 1524X1930 | ||||
| DA-F1001C | Ladder Frame Scaffold System (Flip Lock Frame) | Q345 | 914.4X939.8 | Painted/Powder Coated/Hot-dip galvanized/Electro-galvanized |
| 914.4X1244.6 | ||||
| 914.4X1549.4 | ||||
| 914.4X2006.6 | ||||
| 736.6X1524 |
Frame Scaffold System Construction Applications
